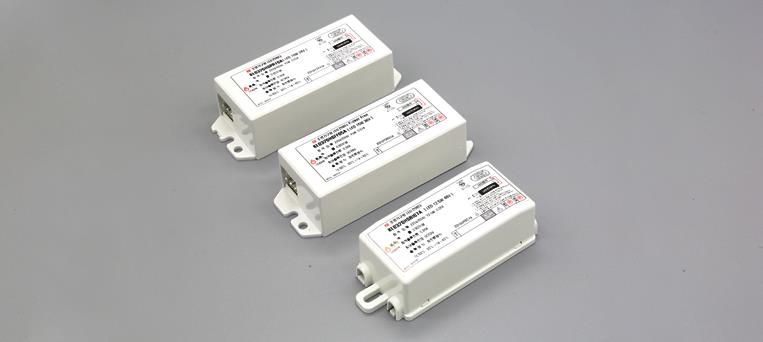

PRODUCT DETAILS
다운라이트형
다운라이트 등기구의 설치 공간과 용도에 맞춰 선택하는 LED 컨버터입니다.
DOWNLIGHT
다운라이트형
DM / HS / JL / JS / JT Series
- 제품군
- 다운라이트형
- 시리즈
- DM / HS / JL / JS / JT
- 주요 적용
- 다운라이트 · 일반 조명 · 센서 조명
- 형태
- 소형 하우징
SPECIFICATIONS & DRAWINGS
제품 사양과 도면.
시리즈별 제품 사양과 도면을 확인하세요.

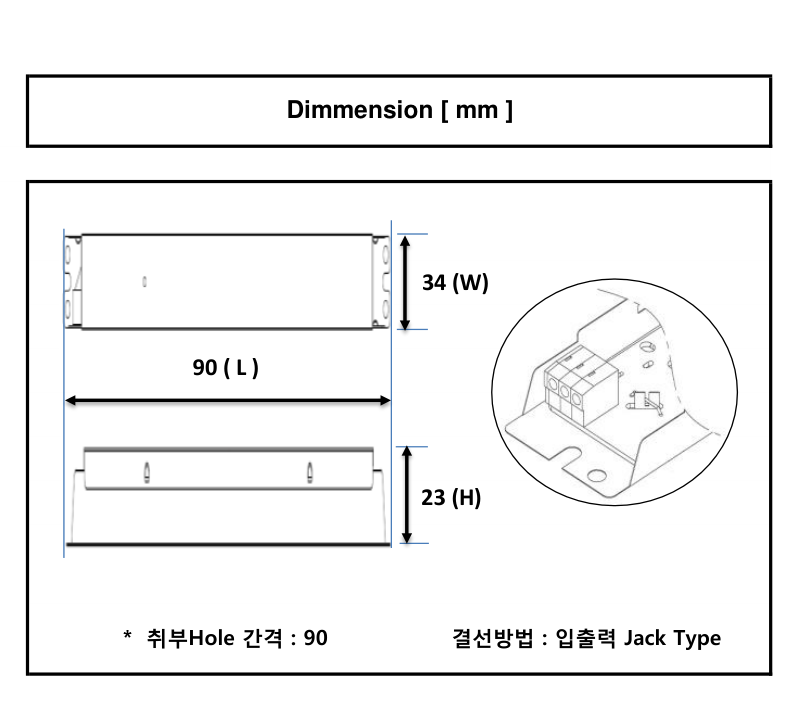

HS Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | HSPF | HSBI | HSFF | |
|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Non Isolation Type | Power Factor Correction Primary Side Regulation Type | |
| Feature | Flicker Free | Standard | Flicker Free | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | ||
| Frequency (주파수) | 60Hz ± 3Hz | |||
| Power Factor (역률) | λ > 0.9 | |||
| Efficiency (효율) | 85% | |||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | ||
| Rated Current (출력전류) | Min 53mA ~ Max 710A | Min 53mA ~ Max 710A | Min 53mA ~ Max 710A | |
| Rated Power (출력전력) | Min 2.5W ~ Max 17W | Min 2.5W ~ Max 17W | Min 2.5W ~ Max 17W | |
| Output Method (출력방식) | Constant Current Type | |||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | ||
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | ||
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | ||
| EMI | ||||

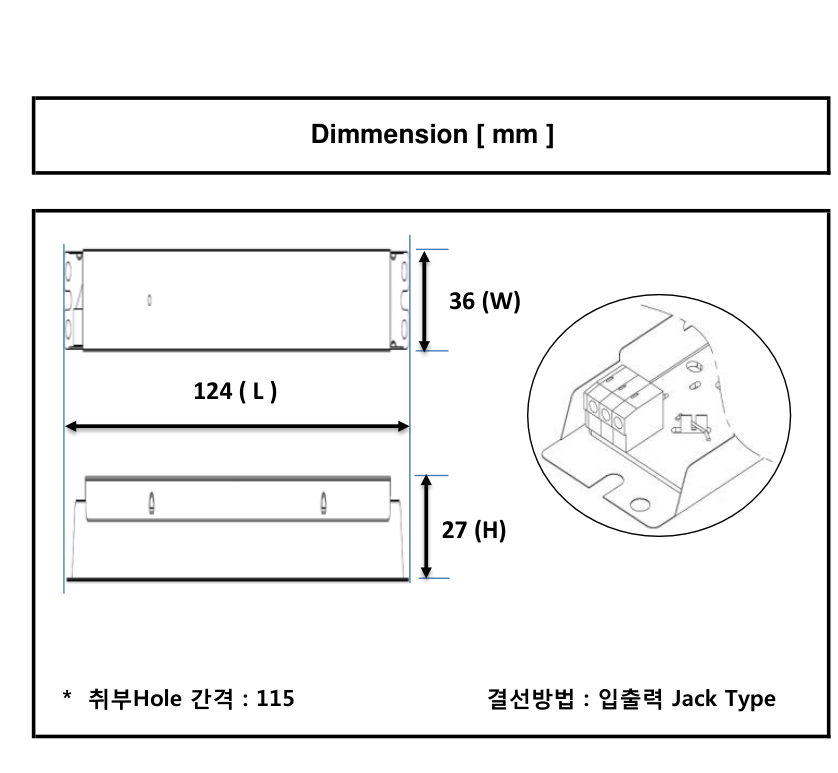

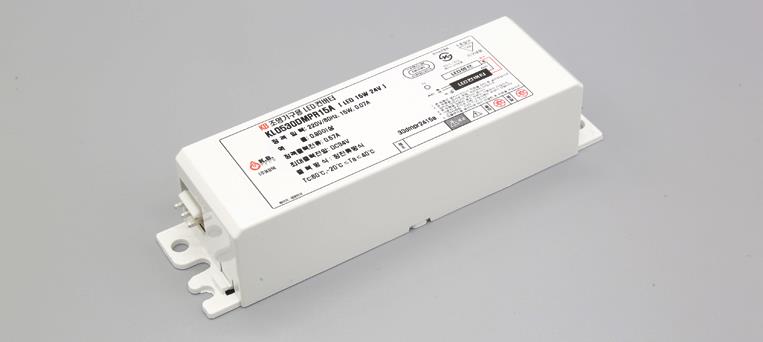

DM Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | DMPR | |
|---|---|---|
| Circuit Type | Primary Side Regulation Type | |
| Feature | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC |
| Frequency (주파수) | 60Hz ± 3Hz | |
| Power Factor (역률) | λ > 0.9 | |
| Efficiency (효율) | 85% | |
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc |
| Rated Current (출력전류) | Min 89mA ~ Max 1060mA | |
| Rated Power (출력전력) | Min 4.2W ~ Max 25.5W | |
| Output Method (출력방식) | Constant Current Type | |
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart |
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ |
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B |
| EMI | ||

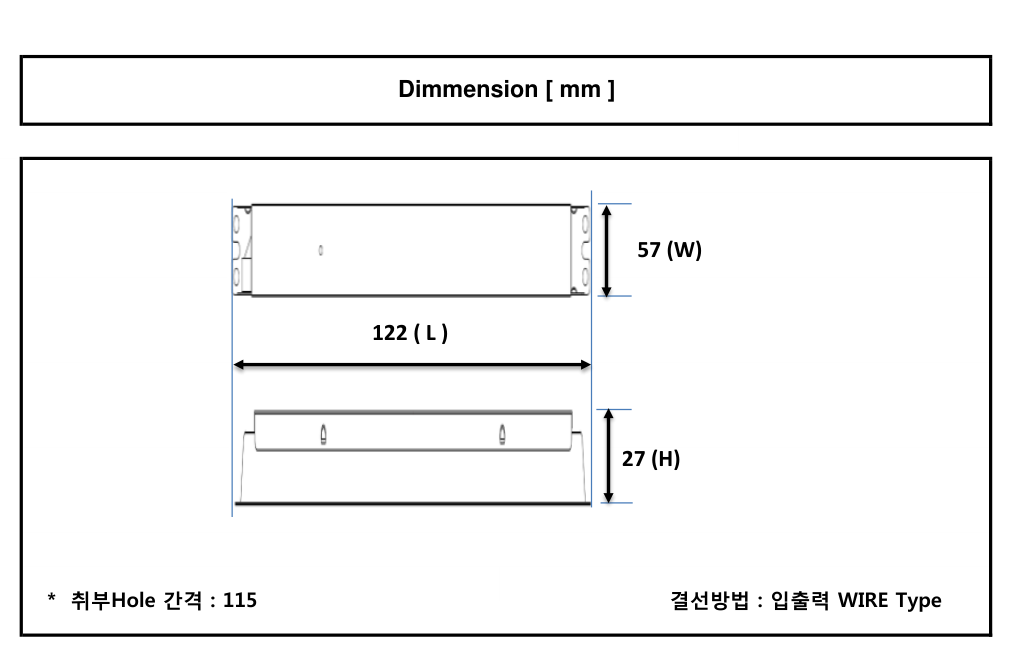

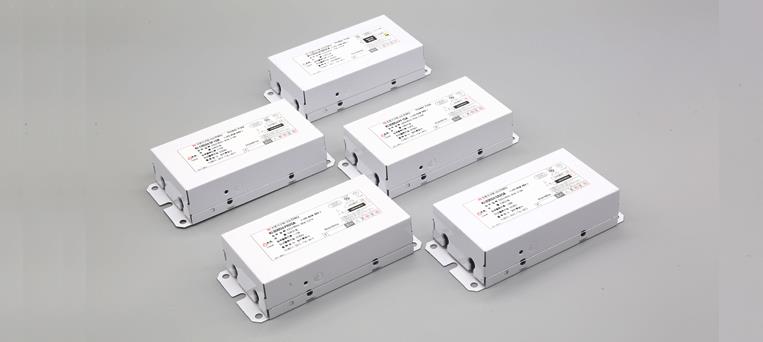

JL Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 와이어 타입 연결
| DESCRIPTION | JLPF | JLPR | JLSR | JLSF | JLDD | |
|---|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | 2 Stage Dimming Type | |||
| Feature | Flicker Free | Standard | DC Sensor | DC Sensor Flicker Free | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | ||||
| Frequency (주파수) | 60Hz ± 3Hz | |||||
| Power Factor (역률) | λ > 0.9 | |||||
| Efficiency (효율) | 85% | |||||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | ||||
| Rated Current (출력전류) | Min 530mA ~ Max 1770mA | Min 530mA ~ Max 1770mA | Min 530mA ~ Max 1770mA | Min 530mA ~ Max 1770mA | Min 178mA ~ Max 1770mA | |
| Rated Power (출력전력) | Min 25.5W ~ Max 42.5W | Min 25.5W ~ Max 42.5W | Min 25.5W ~ Max 42.5W | Min 25.5W ~ Max 42.5W | Min 8.5W ~ Max 42.5W | |
| Output Method (출력방식) | Constant Current Type | |||||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | ||||
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |||||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | ||||
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | ||||
| EMI | ||||||

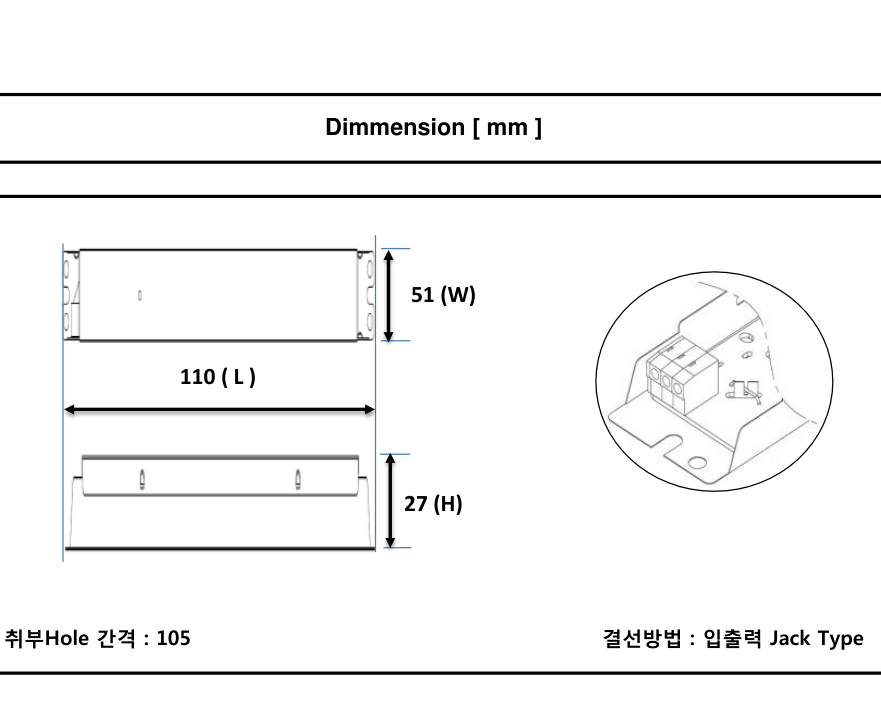

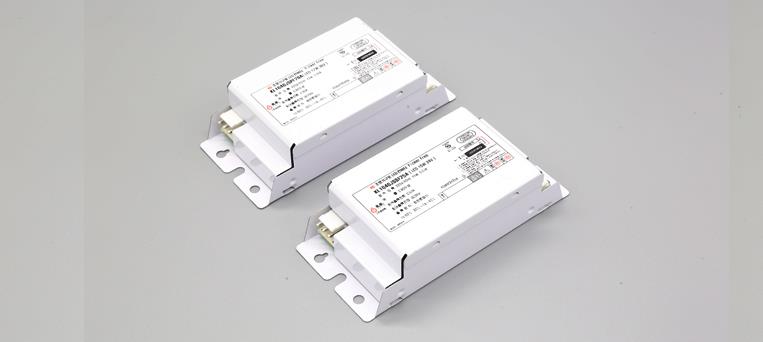

JS Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | JSPF | JSPR | JSSR | JSSF | JSDD | |
|---|---|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | 2 Stage Dimming Type | |||
| Feature | Flicker Free | Standard | DC Sensor | DC Sensor Flicker Free | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | ||||
| Frequency (주파수) | 60Hz ± 3Hz | |||||
| Power Factor (역률) | λ > 0.9 | |||||
| Efficiency (효율) | 85% | |||||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | ||||
| Rated Current (출력전류) | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | |
| Rated Power (출력전력) | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | |
| Output Method (출력방식) | Constant Current Type | |||||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | ||||
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |||||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | ||||
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | ||||
| EMI | ||||||

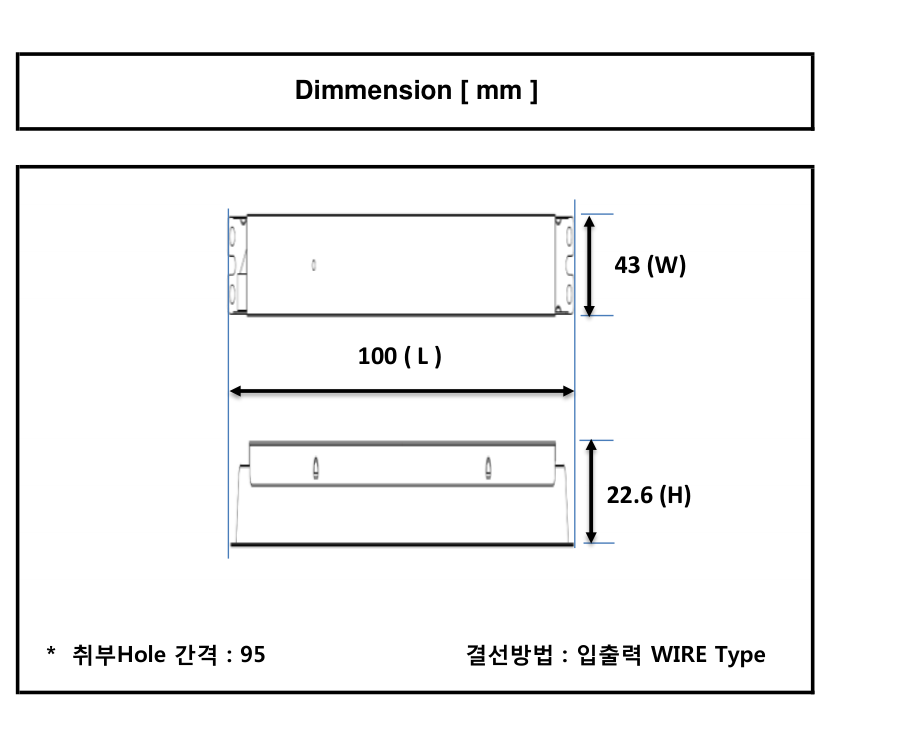

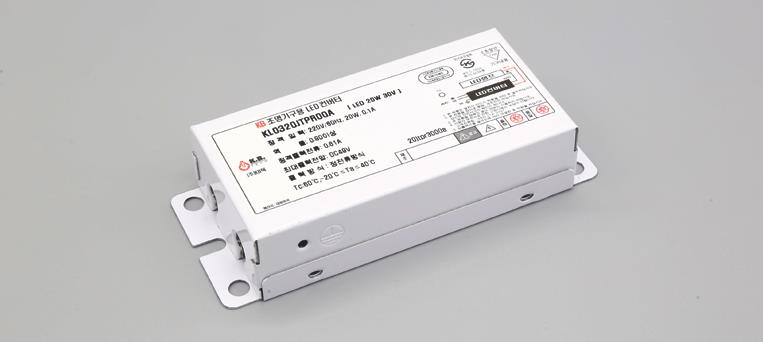

JT Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 와이어 타입 연결
| DESCRIPTION | JTPR | |
|---|---|---|
| Circuit Type | Primary Side Regulation Type | |
| Feature | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC |
| Frequency (주파수) | 60Hz ± 3Hz | |
| Power Factor (역률) | λ > 0.9 | |
| Efficiency (효율) | 85% | |
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc |
| Rated Current (출력전류) | Min 53mA ~ Max 710A | |
| Rated Power (출력전력) | Min 2.5W ~ Max 17W | |
| Output Method (출력방식) | Constant Current Type | |
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart |
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ |
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B |
| EMI | ||
