PRODUCT DETAILS
반달형

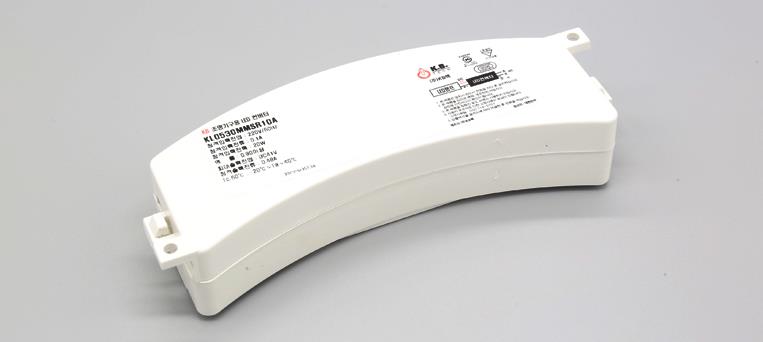

원형 등기구의 내부 공간을 활용할 수 있는 반달형 LED 컨버터입니다.
SPECIFICATIONS & DRAWINGS
제품 사양과 도면.
시리즈별 제품 사양과 도면을 확인하세요.

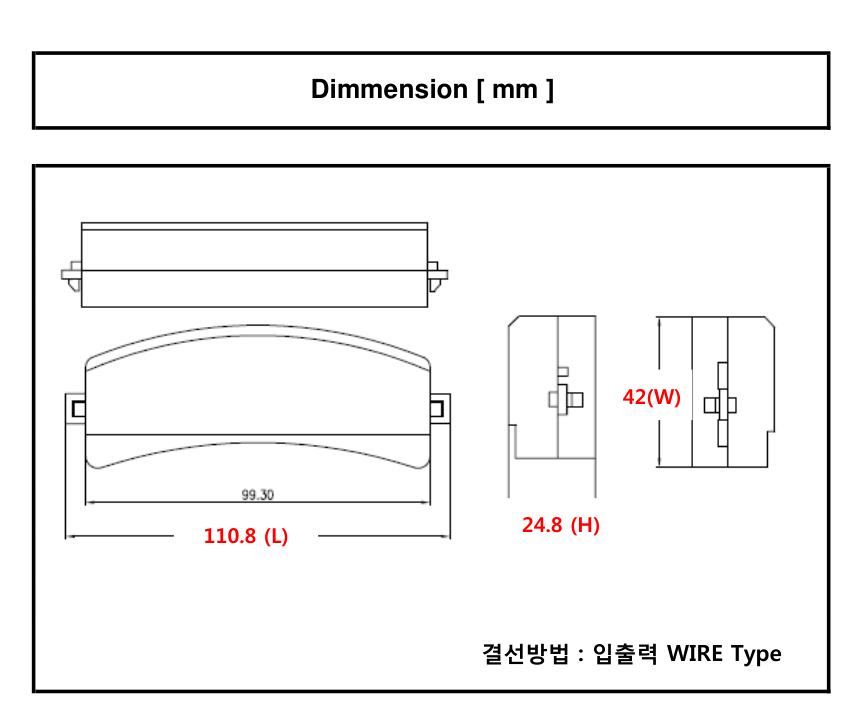

MS Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 와이어 타입 연결
| DESCRIPTION | MSPR | MSSR | |
|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | |
| Feature | Standard | DC Sensor | |
| Voltage (입력전압) | 198 ~ 242 VAC | ||
| Frequency (주파수) | 60Hz ± 3Hz | ||
| Power Factor (역률) | λ > 0.9 | ||
| Efficiency (효율) | 85% | ||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | |
| Rated Current (출력전류) | Min 90mA ~ Max 530mA | Min 90mA ~ Max 530mA | |
| Rated Power (출력전력) | Min 4W ~ Max 13W | Min 4W ~ Max 13W | |
| Output Method (출력방식) | Constant Current Type | ||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | |
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | ||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | |
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | ||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | |
| EMI | |||

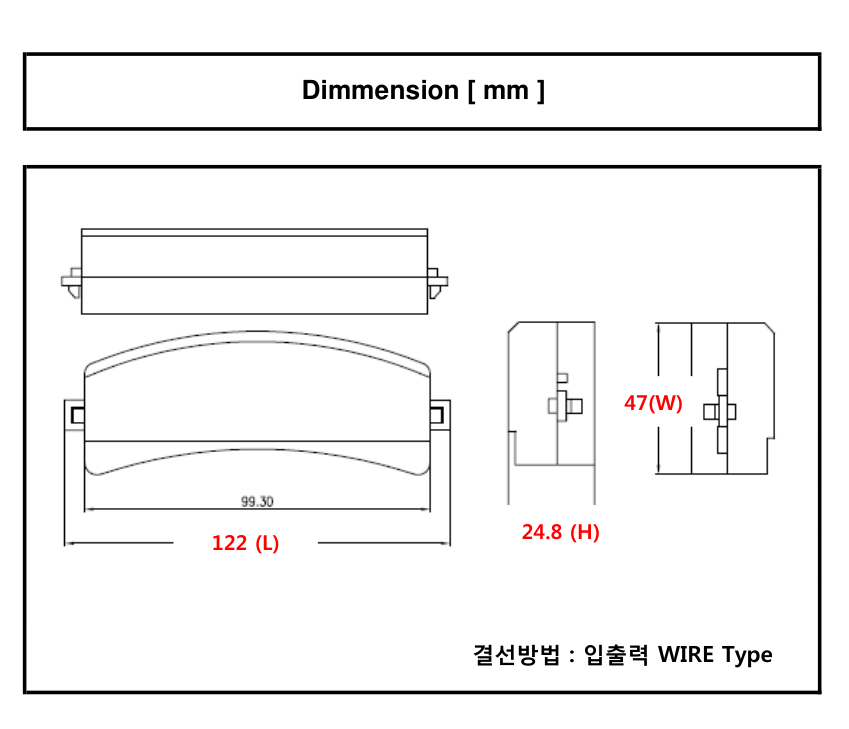

MM Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 와이어 타입 연결
| DESCRIPTION | MMSR | |
|---|---|---|
| Circuit Type | Secondary Side Regulation Type | |
| Feature | DC Sensor | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC |
| Frequency (주파수) | 60Hz ± 3Hz | |
| Power Factor (역률) | λ > 0.9 | |
| Efficiency (효율) | 85% | |
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc |
| Rated Current (출력전류) | Min 89mA ~ Max 710mA | |
| Rated Power (출력전력) | Min 4W ~ Max 17W | |
| Output Method (출력방식) | Constant Current Type | |
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart |
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ |
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B |
| EMI | ||
