울트라슬림형
얇은 형태의 전원장치를 필요로 하는 등기구에 적용하는 LED 컨버터입니다.
ULTRA SLIM
울트라슬림형
US / UP / UN / UM / UL Series
- 제품군
- 울트라슬림형
- 시리즈
- US / UP / UN / UM / UL
- 주요 적용
- 평판등 · 레이스웨이 · 센서 조명
- 형태
- 울트라슬림형
SPECIFICATIONS & DRAWINGS
제품 사양과 도면.
시리즈별 제품 사양과 도면을 확인하세요.

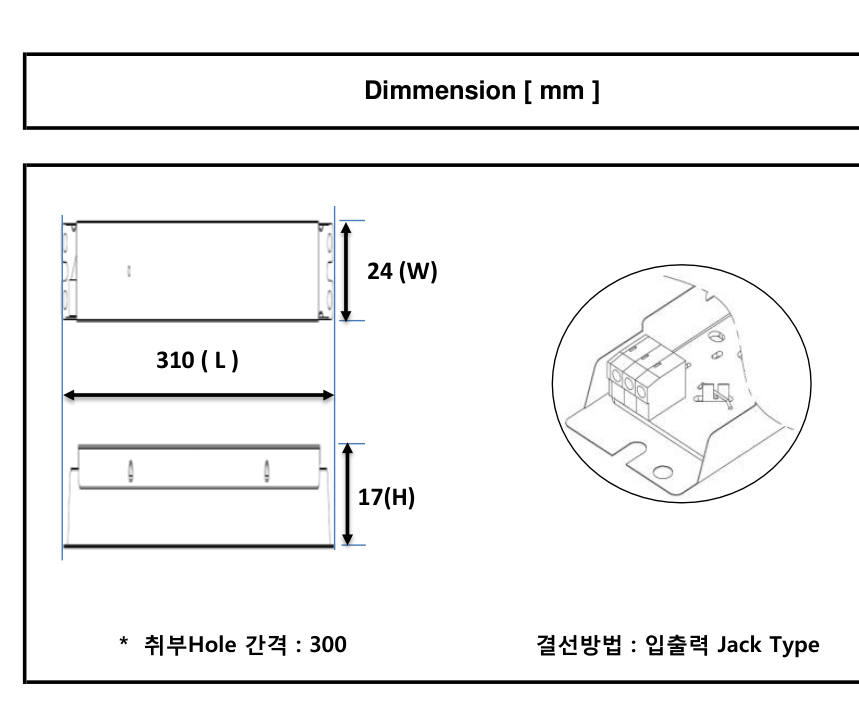

UL Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | ULPF | ULSF | ULPD | UL2D | |
|---|---|---|---|---|---|
| Circuit Type | rimary Side Regulation Typ | Secondary Side Regulation Type | PWM Dimming Type | 2 Switch Dimming Type | |
| Feature | Flicker Free | DC Sensor Flicker Free | Standard | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | |||
| Frequency (주파수) | 60Hz ± 3Hz | ||||
| Power Factor (역률) | λ > 0.9 | ||||
| Efficiency (효율) | 85% | ||||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | |||
| Rated Current (출력전류) | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min A ~ Max A | |
| Rated Power (출력전력) | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min W ~ Max W | |
| Output Method (출력방식) | Constant Current Type | ||||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | |||
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | ||||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | |||
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | ||||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | |||
| EMI | |||||

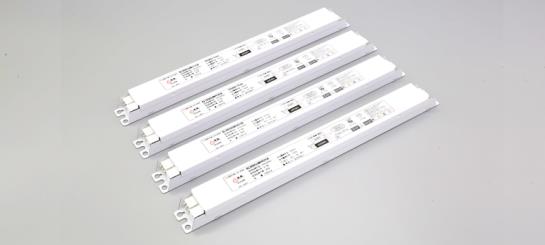

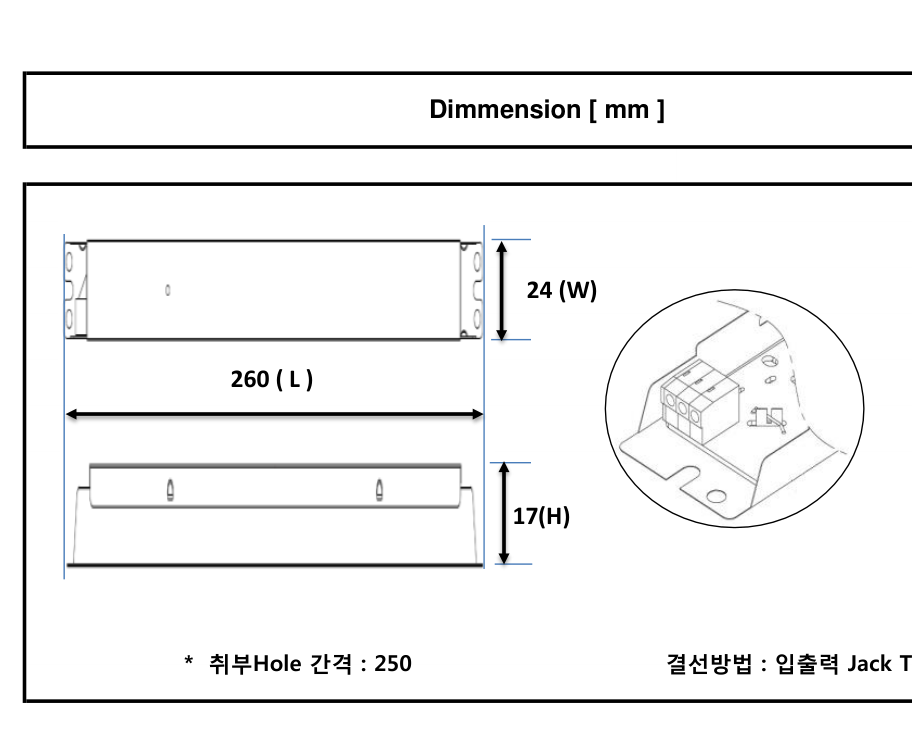

UM Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | UMPF | UMPR | UMSR | |
|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Primary Side Regulation Type | Secondary Side Regulation Type | |
| Feature | Flicker Free | Standard | DC Sensor | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | ||
| Frequency (주파수) | 60Hz ± 3Hz | |||
| Power Factor (역률) | λ > 0.9 | |||
| Efficiency (효율) | 85% | |||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | ||
| Rated Current (출력전류) | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2300mA | Min 530mA ~ Max 2130mA | |
| Rated Power (출력전력) | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 55.5W | Min 25.5W ~ Max 51W | |
| Output Method (출력방식) | Constant Current Type | |||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | ||
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | ||
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | ||
| EMI | ||||

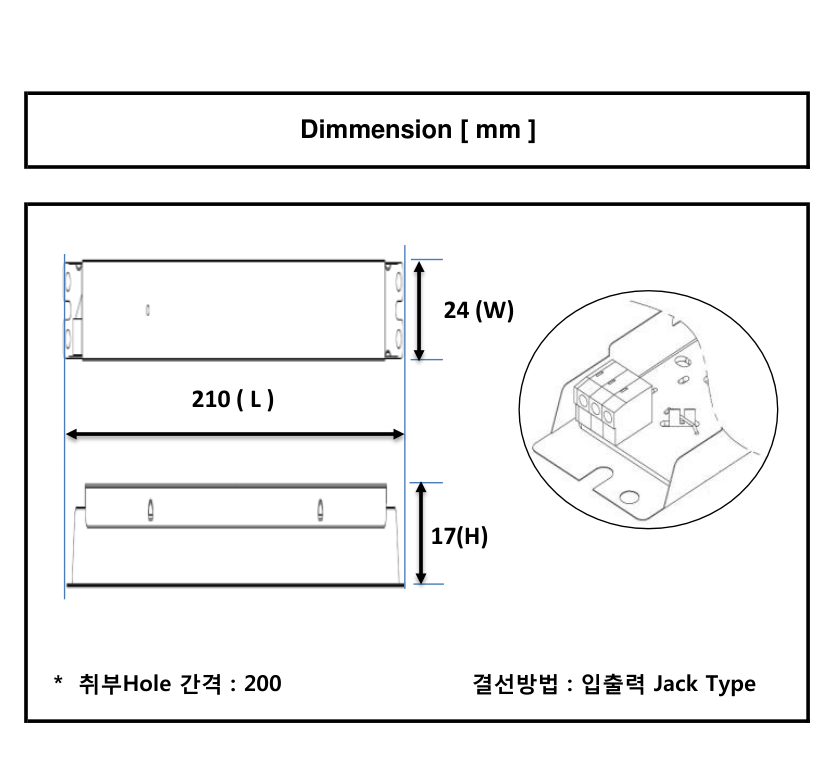

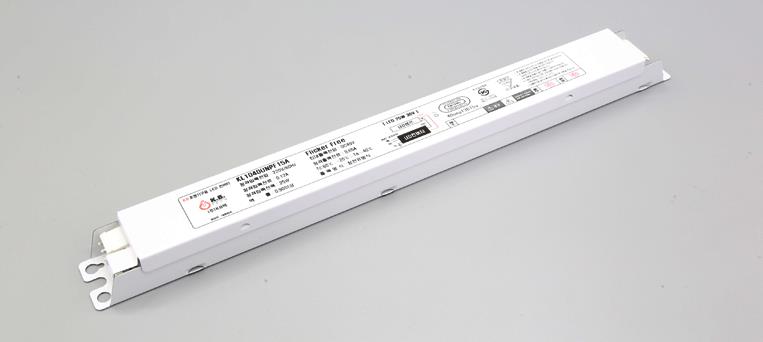

UN Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | UNPF | UNPR | |
|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Primary Side Regulation Type | |
| Feature | Flicker Free | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | |
| Frequency (주파수) | 60Hz ± 3Hz | ||
| Power Factor (역률) | λ > 0.9 | ||
| Efficiency (효율) | 85% | ||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | |
| Rated Current (출력전류) | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | |
| Rated Power (출력전력) | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | |
| Output Method (출력방식) | Constant Current Type | ||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | |
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | ||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | |
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | ||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | |
| EMI | |||

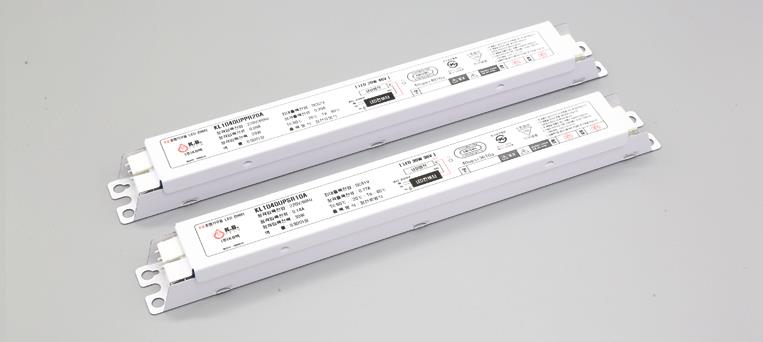

UP Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | UPPR | UPSR | |
|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | |
| Feature | Standard | DC Sensor | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | |
| Frequency (주파수) | 60Hz ± 3Hz | ||
| Power Factor (역률) | λ > 0.9 | ||
| Efficiency (효율) | 85% | ||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | |
| Rated Current (출력전류) | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | |
| Rated Power (출력전력) | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | |
| Output Method (출력방식) | Constant Current Type | ||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | |
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | ||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | |
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | ||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | |
| EMI | |||

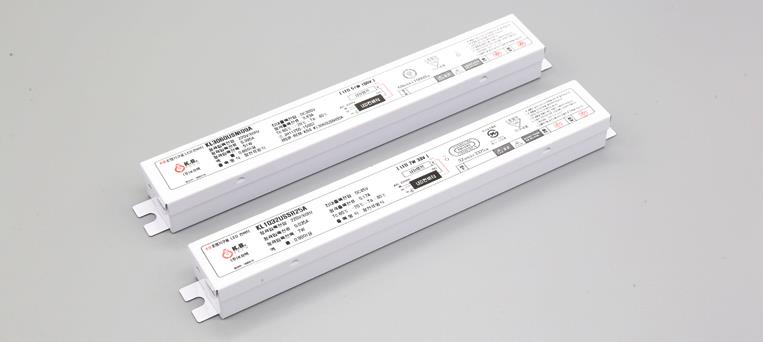

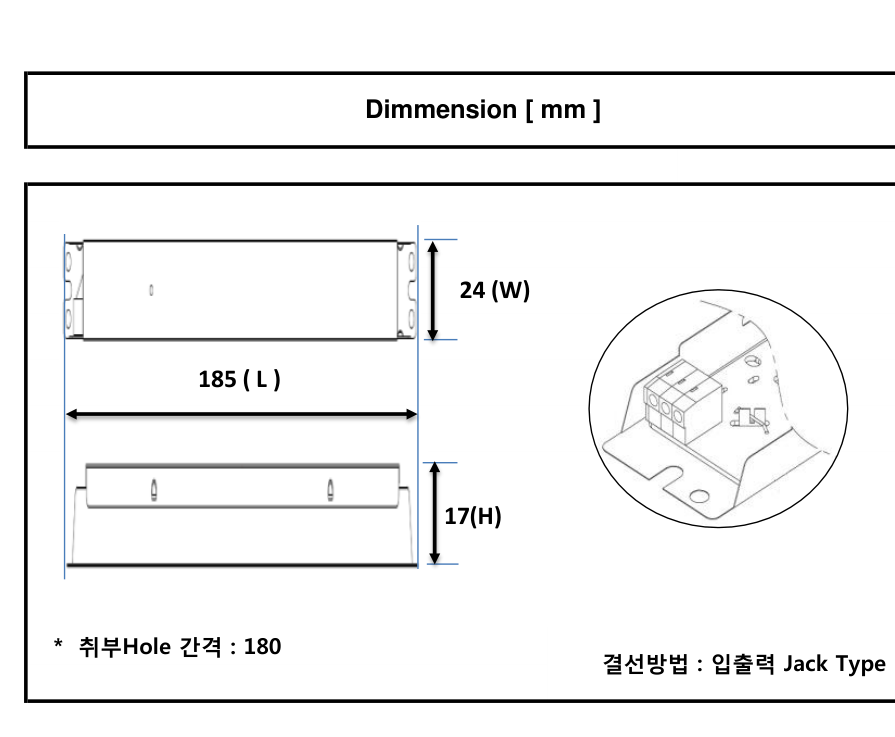

US Series
주요 특징
- 입력 전압: 198 ~ 242 VAC
- 정전류 출력 방식
- 잭 타입 연결
| DESCRIPTION | USPR | USSR | USNI | |
|---|---|---|---|---|
| Circuit Type | Primary Side Regulation Type | Secondary Side Regulation Type | Non Isolation Type | |
| Feature | Standard | DC Sensor | Standard | |
| Input | Voltage (입력전압) | 198 ~ 242 VAC | ||
| Frequency (주파수) | 60Hz ± 3Hz | |||
| Power Factor (역률) | λ > 0.9 | |||
| Efficiency (효율) | 85% | |||
| Output | DC Voltage (출력전압) | 24Vdc ~ 48Vdc | ||
| Rated Current (출력전류) | Min 177mA ~ Max 1420mA | Min 177mA ~ Max 1420mA | Min 40mA ~ Max 800mA | |
| Rated Power (출력전력) | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 34W | Min 8.5W ~ Max 51W | |
| Output Method (출력방식) | Constant Current Type | |||
| Protection | Over Load (과부하) | Protection Type : Shut Down operation Voltage, Restart | ||
| Over Voltage (과전압) | Protection Type : Shut Down operation Voltage, Restart | |||
| Environment | Operating Temperature (사용온도) | -20℃ ~ 50℃ | ||
| Storage Temp & Humidity (보관조건) | -20℃ ~ 70℃ / 10 ~ 90%RH | |||
| Safety & EMI | Safety Standards | KS C 7655, 10-IS 0256 Compliance to KSC IEC 61000, Class B | ||
| EMI | ||||
